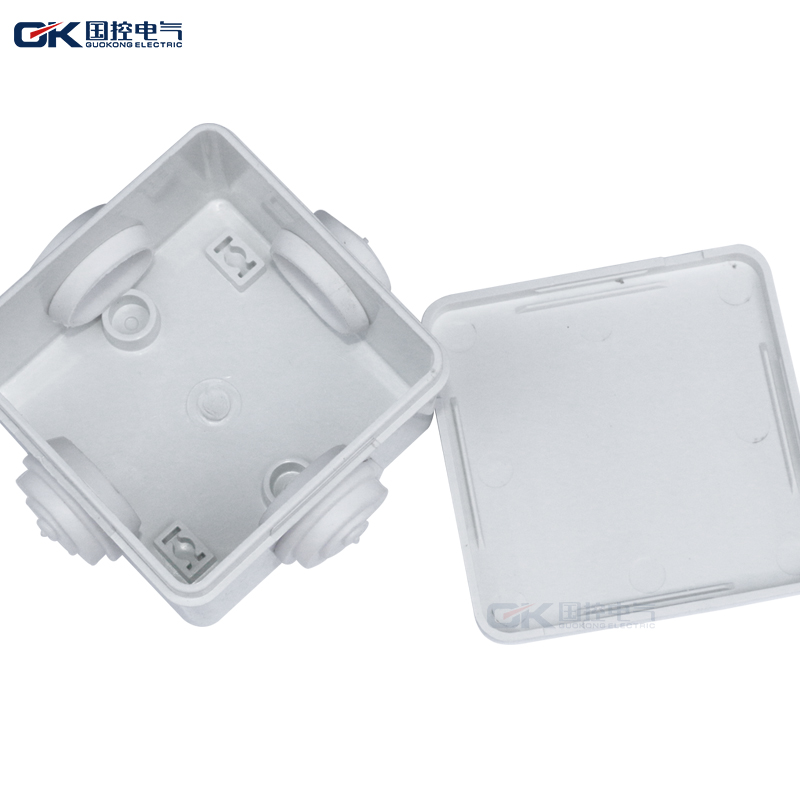

80*80*50 Mounting Hole PC Material Safety Waterproof Dustproof Plastic ABS Junction Box
Waterproofing junction box is mainly applicable to indoor and outdoor electrical, communication, fire fighting equipment, iron and steel smelting, petrochemical, electronics, electric power, railway, construction sites, mines, mines, airports, hotels, ships, large factories, coastal factories, unloading terminals, sewage treatment facilities, environmental pollution. Do so.
Texture of material
Choose the new material imported from Taiwan, better thermoplastic ABS or (PC) polycarbonate, or can choose the material according to the customer's requirements. It can make the fuel, anti ultraviolet material, and the top cover has two forms of transparent and opaque (material without corrosion, antistatic, insulation)
Box thickness
The average thickness of the box body is 3mm, the thickness of the important parts is strengthened (no deformation), the impact strength is IK07 (uncrushed); the flame retardant grade V0. (resistant to height, long time use does not fade), light (easy to install, can also follow.
Waterproof property
Waterproof, protection level of more than IP66, even if the heavy rain during the operation will not water, very safe.
| Type |
LxWxH(mm) |
Packing Quantity |
Order code |
| GK-ZSX-55 |
50*50 |
320 |
ZSX-55 |
| GK-ZSX-85 |
80*50 |
240 |
ZSX-85 |
| GK-ZSX-0808 |
80*80*50 |
240 |
ZSX-0808 |
| GK-ZSX-0808-1 |
85*85*50 |
200 |
ZSX-0808-1 |
| GK-ZSX-1010 |
100*100*70 |
100 |
ZSX-1010 |
| GK-ZSX-1511 |
150*110*70 |
60 |
ZSX-1511 |
| GK-ZSX-1515 |
150*150*70 |
56 |
ZSX-1515 |
| GK-ZSX-2010 |
200*100*70 |
50 |
ZSX-2010 |
| GK-ZSX-2010-1 |
200*100*110 |
50 |
ZSX-2010-1 |
| GK-ZSX-2015 |
200*155*80 |
40 |
ZSX-2015 |
| GK-ZSX-2020 |
200*200*80 |
36 |
ZSX-2020 |
| GK-ZSX-2520 |
255*200"80 |
30 |
ZSX-2520 |
| GK-ZSX-3025 |
300*250*120 |
10 |
ZSX-3025 |
| GK-ZSX-4035 |
400*350*120 |
5 |
ZSX-4035 |
